Fetra Pallet dolly 22601 as tugger train
Platform 1210 x 810 mm - 1000 kg
| Total load capacity (kg): 1000 |
| Platform length (mm): 1210 |
| Platform width (mm): 810 |
| Overall length (mm): 1327 |
| Overall width (mm): 855 |
| Overall height (mm): 783 |
| Wheels: Polyurethane |
| Wheel dimensions (mm): 200 x 50 |
| Platform height (mm): 290 |
| Version: as a tugger train |
HS Code:
73269098
Delivery time (indicative, working days):
20-30
FETRA manufacturer warranty period:
Made in Germany, 10 years

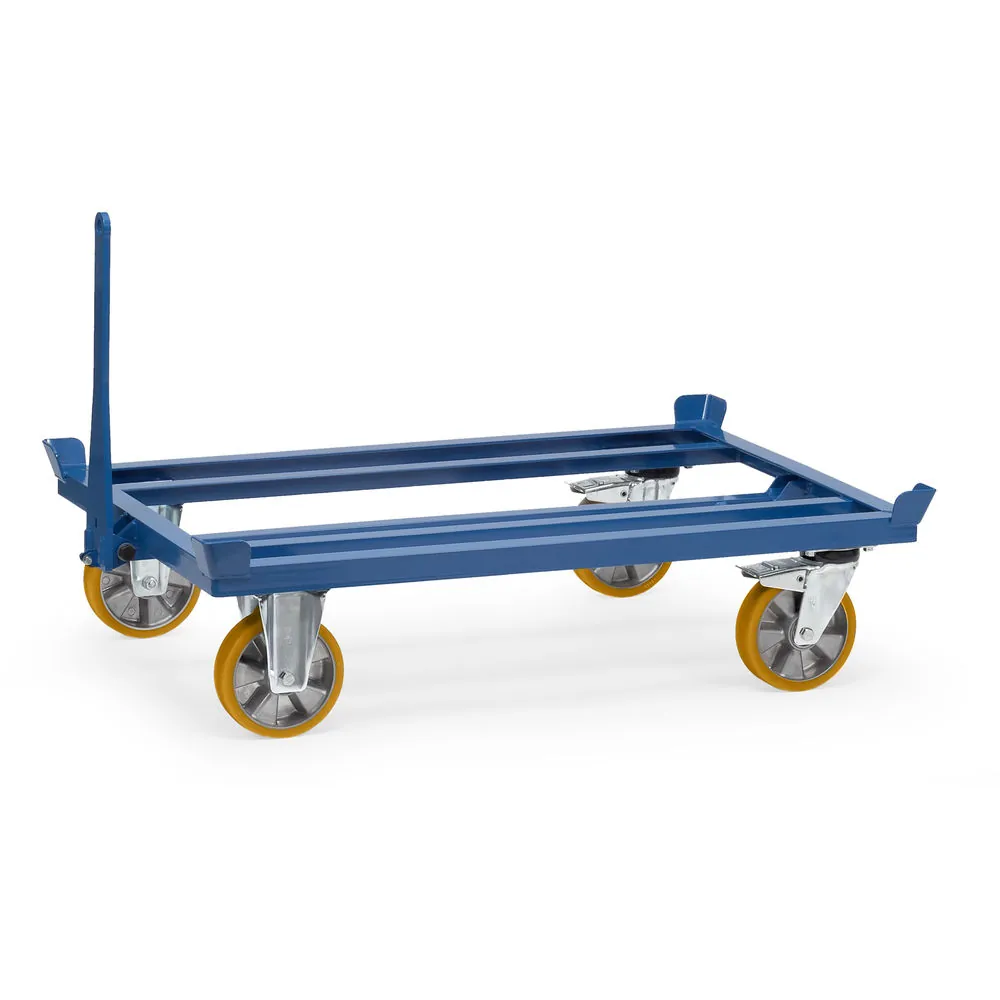

Fetra Pallet dolly 22601 as tugger train. Platform 1210 x 810 mm - 1000 kg.
For pallets and lattice boxes in European standard sizes. Easy loading and unloading from the side with forklift. Sturdy sectional steel construction with 4 catch corners for stacking. Powder coated blue RAL 5007. 2 swivel and 2 fixed-wheel castors, with robust steel carriages suitable for tugger trains, wheels with PU tyres on aluminium rims, hubs with precision ball bearings. Swivel castors with wheel locks. Tyres are non-marking (trackless). Low-noise running on even flooring. Capacity 1000 kg. This coupling system guarantees the best possible directional stability. Tractors must have front wheel steering and tugger train drawbar! Max. 5 pallet dollies per train. Max. train speed 6 km/h. Max. train weight 3000 kg. Self-securing flat steel drawbar on the fixed-wheel side. Drawbar eye Ø 26.5 mm. Comfortable foot operation. Automatically rebounds into vertical resting position by means of gas spring. On the swivel wheel side there is a strong coupling pin Ø 25 mm with leading jaws and automatic safety lock. Coupling height 205 mm.
Technical data
- Total load capacity (kg): 1000
- Platform length (mm): 1210
- Platform width (mm): 810
- Platform height (mm): 290
- Overall length (mm): 1327
- Overall width (mm): 855
- Overall height (mm): 783
- Wheels: Polyurethane
- Wheel dimensions (mm): 200 x 50
- Version: as a tugger train
