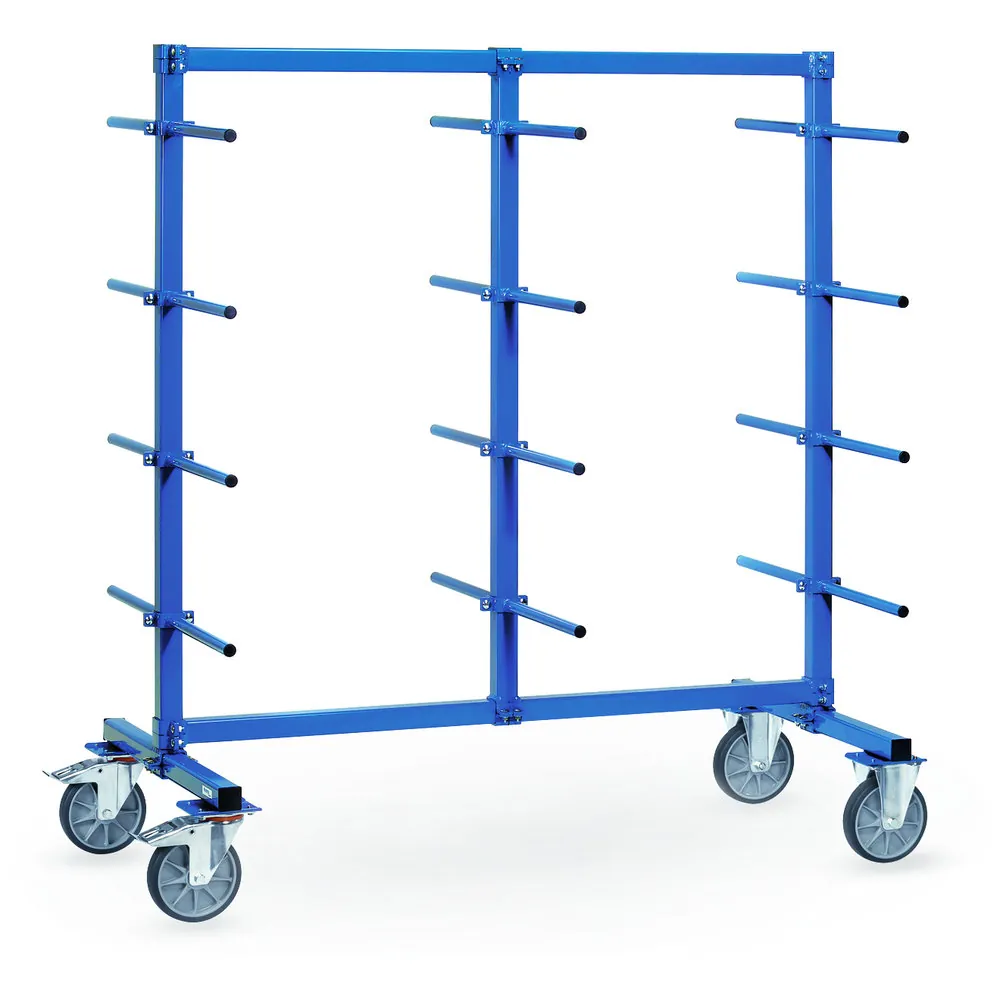

Fetra Cantilever trolley 4624
1200 x 800 mm, cantilever arm 370 mm long
| Total load capacity (kg): 500 |
| Platform length (mm): 1200 |
| Platform width (mm): 370 |
| Overall length (mm): 1400 |
| Overall width (mm): 800 |
| Overall height (mm): 1807 |
| Wheels: TPE |
| Wheel dimensions (mm): 200 x 40 |
| Version: double-sided |
HS Code:
87168000
Delivery time (indicative, working days):
20-30
FETRA manufacturer warranty period:
Made in Germany, 10 years
Fetra Cantilever trolley 4624. 1200 x 800 mm, cantilever arm 370 mm long.
Modular system: Frame made of sturdy square tube. Cross beams, posts and bars connected with solid screwed joints. Carrier spars made of tubular steel Ø 27 mm with screwed joints. With 24 carrier spars on both sides (12 per side). Carrying capacity per level 120 kg (60 kg per side). Powder coated blue RAL 5007. 2 swivel and 2 fixed-wheel castors, TPE tyres, hubs with groove ball bearing. Swivel castors with wheel locks.
Technical data
- Total load capacity (kg): 500
- Platform length (mm): 1200
- Platform width (mm): 370
- Overall length (mm): 1400
- Overall width (mm): 800
- Overall height (mm): 1807
- Wheels: TPE
- Wheel dimensions (mm): 200 x 40
- Version: double-sided
