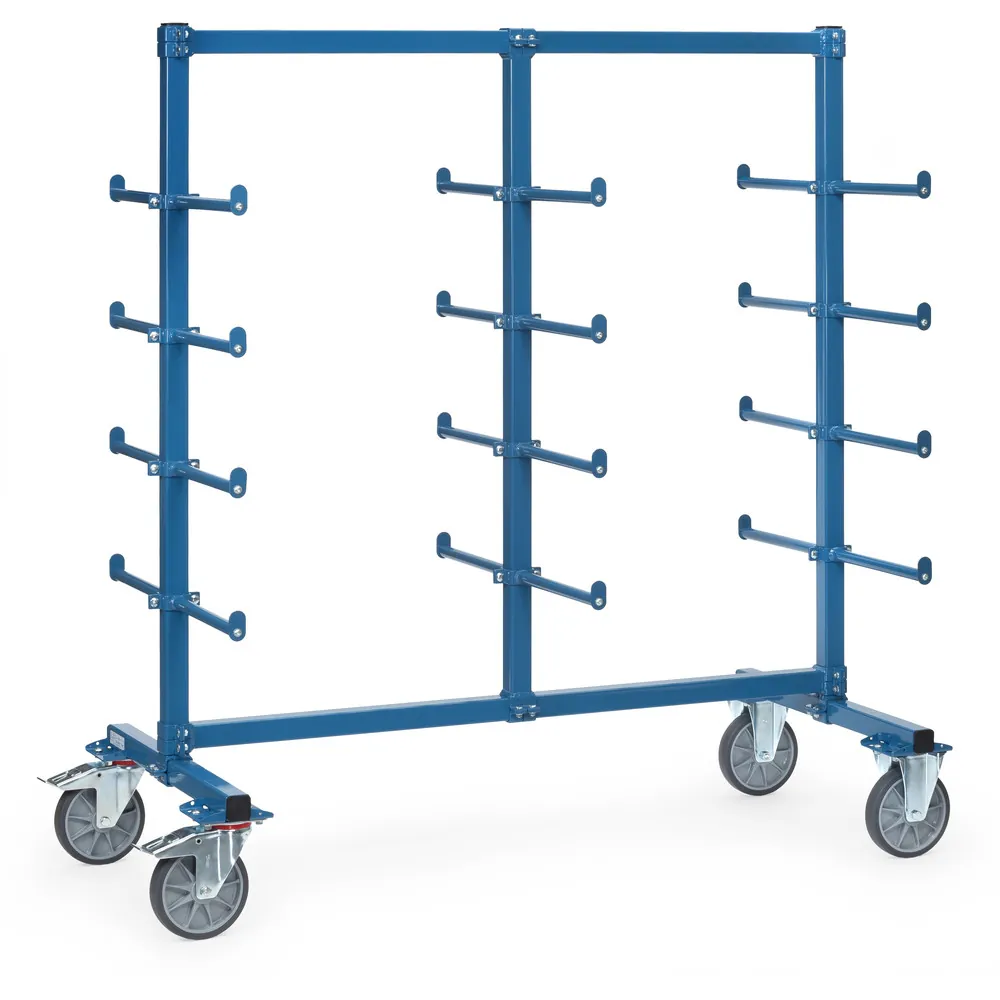

Fetra Cantilever trolley 4625AS with roll-off stops
1600 x 800 mm, cantilever arm 370 mm long
| Total load capacity (kg): 500 |
| Platform length (mm): 1600 |
| Platform width (mm): 370 |
| Overall length (mm): 1800 |
| Overall width (mm): 800 |
| Overall height (mm): 1807 |
| Wheels: TPE |
| Wheel dimensions (mm): 200 x 40 |
| Version: double-sided |
HS Code:
87168000
Delivery time (indicative, working days):
20-30
FETRA manufacturer warranty period:
Made in Germany, 10 years
Fetra Cantilever trolley 4625AS with roll-off stops. 1600 x 800 mm, cantilever arm 370 mm long.
Modular system: Frame made of sturdy square tube. Cross beams, posts and bars connected with solid screwed joints. Carrier spars made of tubular steel Ø 27 mm with screwed joints. With 24 carrier spars on both sides (12 per side) with anti skidding device. Carrying capacity per level 120 kg (60 kg per side). Powder coated blue RAL 5007. 2 swivel and 2 fixed-wheel castors, TPE tyres, hubs with groove ball bearing. Swivel castors with wheel locks.
Technical data
- Total load capacity (kg): 500
- Platform length (mm): 1600
- Platform width (mm): 370
- Overall length (mm): 1800
- Overall width (mm): 800
- Overall height (mm): 1807
- Wheels: TPE
- Wheel dimensions (mm): 200 x 40
- Version: double-sided
