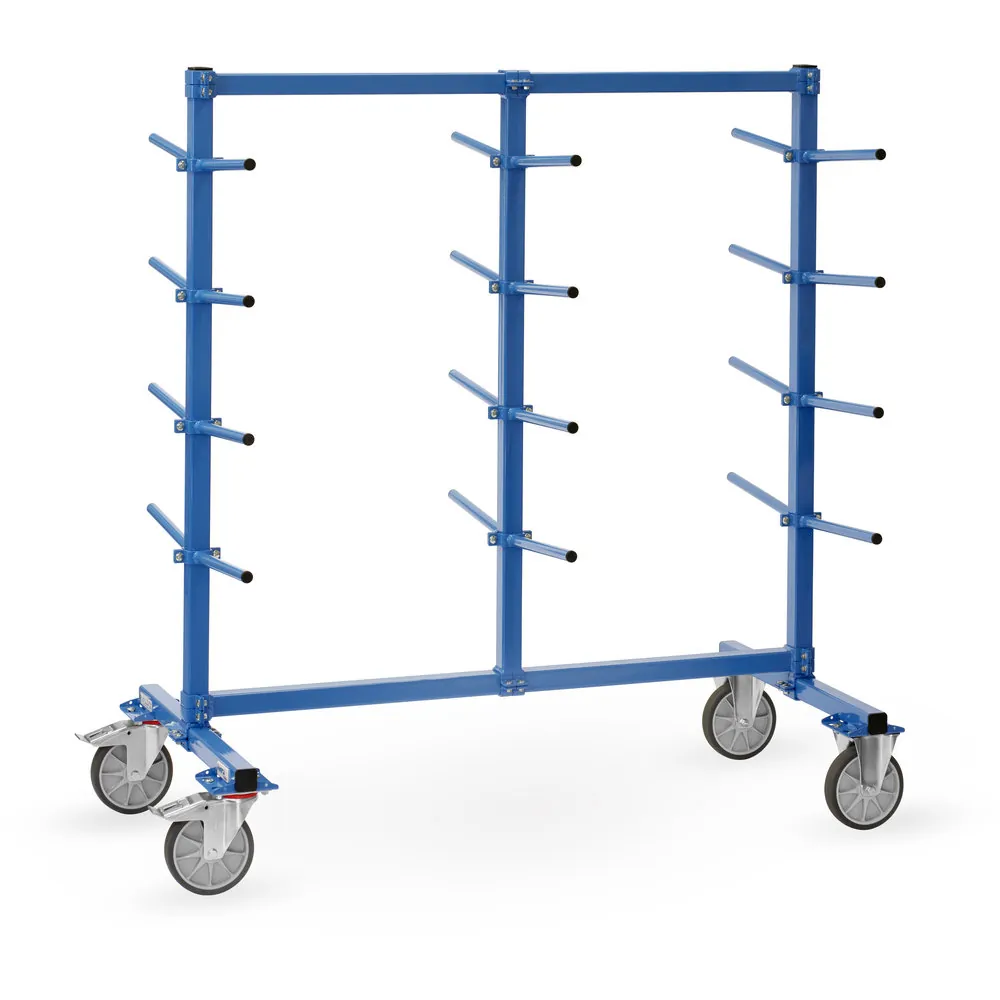

Fetra Cantilever trolley 4628
1600 x 800 mm, 5° cantilever arm 370 mm long
| Total load capacity (kg): 500 |
| Platform length (mm): 1600 |
| Platform width (mm): 370 |
| Overall length (mm): 1800 |
| Overall width (mm): 800 |
| Overall height (mm): 1807 |
| Wheels: TPE |
| Wheel dimensions (mm): 200 x 40 |
| Version: double-sided |
Barcode:
4017976346212
Delivery time (indicative, working days):
20-30
Fetra Cantilever trolley 4628. 1600 x 800 mm, 5° cantilever arm 370 mm long.
Frame made of sturdy steel sections. Wheel supports, uprights and crossbeams are connected by strong bolted plates. Support arms made of 27 mm diameter steel tube with mounting plates. 24 support arms inclined at 5°, arranged on both sides (12 per side). Usable arm length 370 mm. Load capacity per level 120 kg (60 kg per side). Powder coated blue RAL 5007. 2 swivel and 2 fixed castors with TPE rubber wheels and roller bearings. Swivel castors with brakes.
Technical data
- Total load capacity (kg): 500
- Platform length (mm): 1600
- Platform width (mm): 370
- Overall length (mm): 1800
- Overall width (mm): 800
- Overall height (mm): 1807
- Wheels: TPE
- Wheel dimensions (mm): 200 x 40
- Version: double-sided
