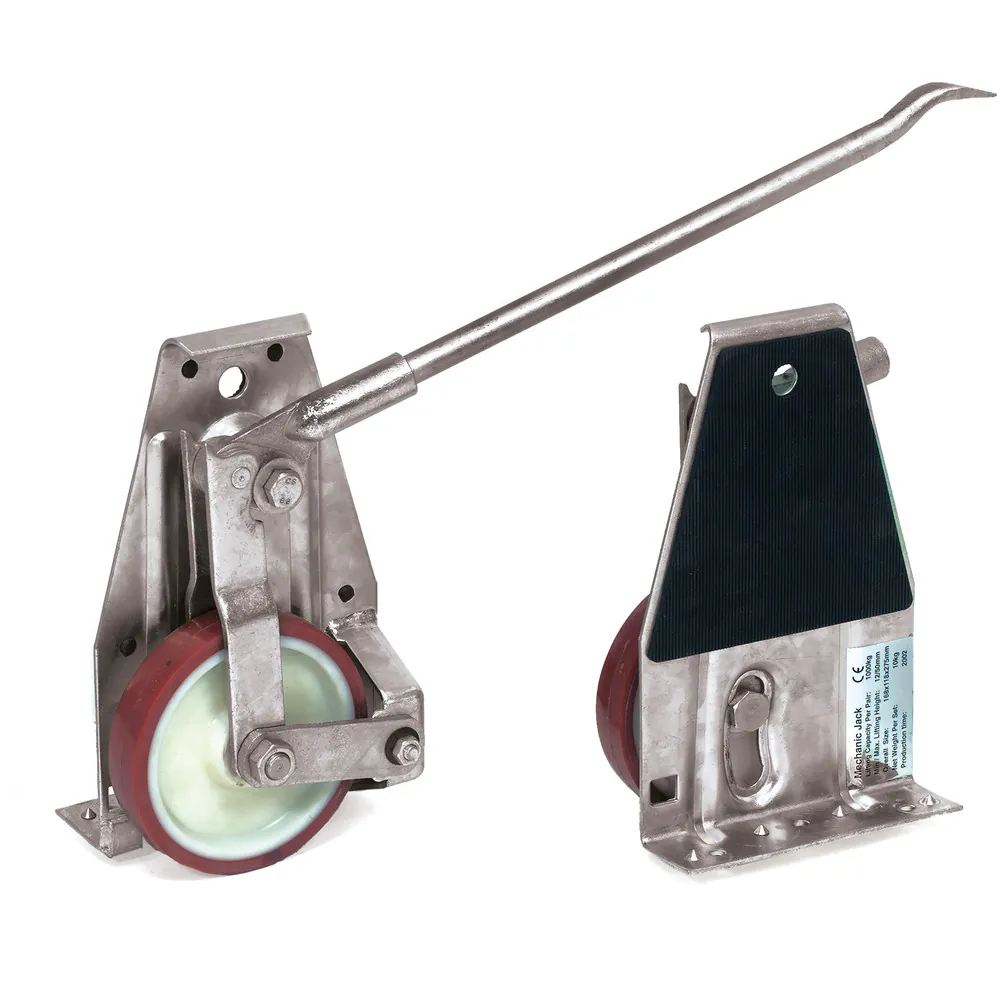

Fetra Lifting rollers 6971
Incl. lifting bar - load capacity 1 tonnes
| Total load capacity (kg): 1000 |
| Overall length (mm): 170 |
| Overall width (mm): 126 |
| Overall height (mm): 272 |
| Wheels: Polyurethane |
| Wheel dimensions (mm): 138 x 28 |
HS Code:
73269098
Barcode:
4017976069715
Delivery time (indicative, working days):
5
FETRA manufacturer warranty period:
10 years
Fetra Lifting rollers 6971. Incl. lifting bar - load capacity 1 tonnes.
for the transport of heavy cupboards etc., steel plate frame galvanized yellow. Contact area with rubber cover, wheel with Polyurethanee tyres. Claw height: lowered = 12 mm, lifted max. = 50 mm. Scope of delivery: 2 lifting rolls and 1 lever rod. Handling: Lift load with lever rod, place claw of the lifting roll underneath the load and finally lift load completely by shifting the control lever by means of the lever rod. Proceed exactly in the same way on the opposite side with the second lifting roll and the load can be moved.
Technical data
- Total load capacity (kg): 1000
- Overall length (mm): 170
- Overall width (mm): 126
- Overall height (mm): 272
- Wheels: Polyurethane
- Wheel dimensions (mm): 138 x 28
