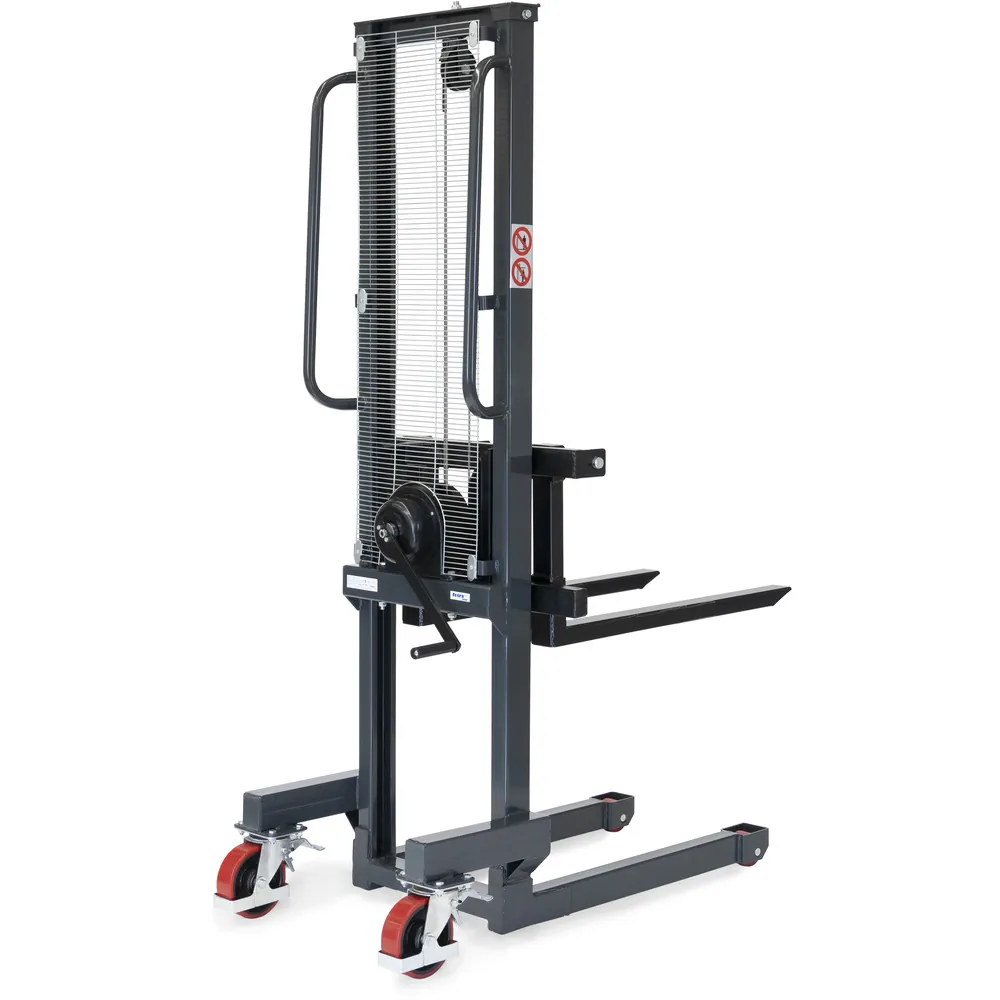

Fetra Hand winch stacker 6851
Fork length 800 mm - 250 kg
| Total load capacity (kg): 250 |
| Overall length (mm): 1350 |
| Overall width (mm): 725 |
| Overall height (mm): 2030 |
| Wheels: Polyurethane |
| Wheel dimensions (mm): 150 x 40 |
| Lifting height from (mm): 90 |
| Lifting height to (mm): 1560 |
| Fork length (mm): 800 |
| Fork width (mm): 75 |
| Overall fork width (mm): 170-690 |
| Fork roller material: Nylon |
| Fork roller diameter x width (mm): 80 x 47 |
HS Code:
84279000
Barcode:
4017976068510
Delivery time (indicative, working days):
5
FETRA manufacturer warranty period:
2 years
Fetra Hand winch stacker 6851. Fork length 800 mm - 250 kg.
For the occasional use as lifting and transport appliance. Sturdy sectional steel construction with tubular push handles, powder coated anthracite RAL 7016. Maintenance free. Lifting by means of safety hand winch. Forks adjustable. 2 castor wheels, wheels with Polyurethanee tyres 150 x 40 mm and 2 fork rollers nylon 80 x 47 mm. Castor wheels with lock. Load center distance: 400 mm, stroke per crank turning: 40 mm, total height 2030 mm.
Technical data
- Total load capacity (kg): 250
- Overall length (mm): 1350
- Overall width (mm): 725
- Overall height (mm): 2030
- Lifting height from (mm): 90
- Lifting height to (mm): 1560
- Fork length (mm): 800
- Fork width (mm): 75
- Overall fork width (mm): 170-690
- Wheels: Polyurethane
- Wheel dimensions (mm): 150 x 40
- Fork roller material: Nylon
- Fork roller diameter x width (mm): 80 x 47
